4.6 The View 'Kiviat Diagrams'

This view shows information for one UML design element at a time. On the control panel to the left, you can choose the element to display. The panel on the right hand side graphically displays the values of all metrics defined for the element.

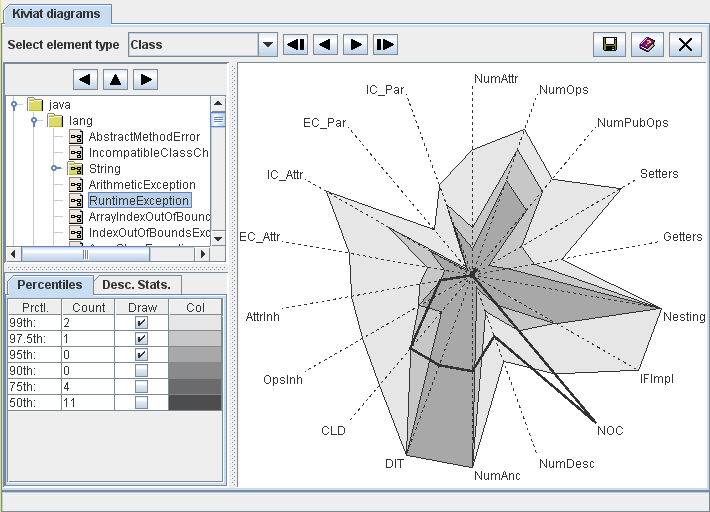

Kiviat diagram View
Figure 11: Kiviat Diagram View

Select the element to display from the tree at the top of the control panel. You can adjust the size of the tree with the separator bars below and to the right. Use the Left buttonUp buttonRight button buttons or the cursor keys to navigate through the tree.

The graph on the right hand side is a so-called Kiviat diagram, showing the measurement values of all metrics for the selected element. Each axis (or ray) of the graph represents one metric, as labeled in the graph. The measurement scale of each axis is the range of the metric: the minimum value is located in the center, the maximum value at the outer end. The axes are linearly scaled.

The thick line connects the measurement values of the selected element for each metric on the axes. If the element has many relatively large values, the area enclosed by the thick line will be large. So the size of the enclosed area serves as an indicator of the criticality of the element.

Note that metrics with non-numerical values, or metrics that do not vary at all, are not suitable for the graph and therefore omitted. Also, the Kiviat graph can only be shown for elements with at least three suitable metrics. If you see a "Diagram not available" message instead of a graph, there are less than three suitable metrics for the selected element type.

Below the element tree you can choose to display information about metric percentiles of the selected model element, or to display the descriptive statistics for a metric shown in the graph.


The percentiles table shows, for various percentiles (column "Prctl."), the number of metrics for which the measurement values exceed the percentile for the selected element (column "Count"). Assuming we mostly deal with metrics where higher values indicate lower quality, a design element should be considered critical if a larger number of metric values for the element are in the upper percentiles (e.g., 90th, 95th).

The percentiles table also controls which percentiles of the metrics are displayed in the graph. Check the boxes in the column "Draw" for the percentiles to display. This gives an indication how the measurement values of the selected element compare to all other elements. Column "Color" indicates the color for each percentile on the graph.

Descriptive Statistics

If you click near one of the axis in the Kiviat diagram, a short definition of the metric and its descriptive statistics with minimum and maximum values will be displayed on this tab.

The context menu of the graph provides links the measurement catalog (see Section 4.13 "The View 'Catalog'") and histogram (see Section 4.5 "The View 'Histograms'") for the metric of the nearest axis.
