## 4.10 The View 'Relation Matrices'

The relation matrices view shows relations between individual design elements.
For example, the relation matrix in Figure 17 shows the
inheritance relationships from child classes (rows) to parent classes
(columns).

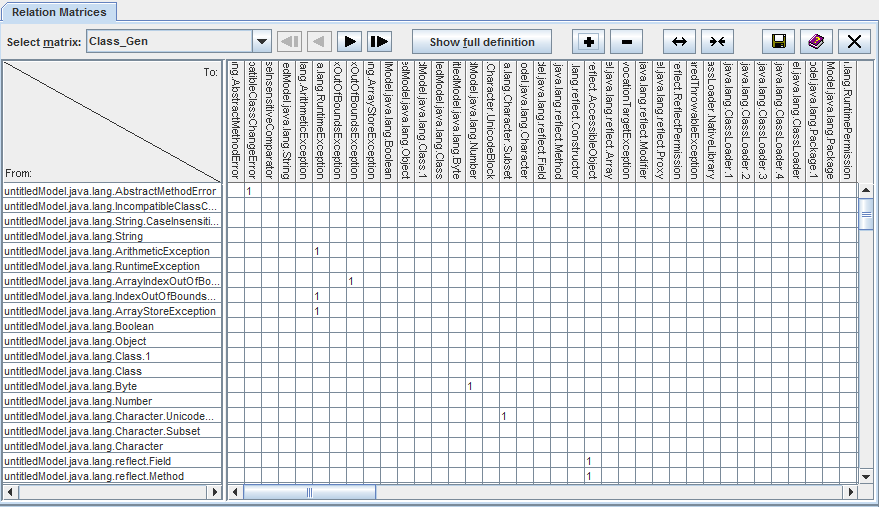

**Figure 17: Relation matrix**

The rows of a relationship matrix show the source design elements
from which the relationship originates, the columns contain the target
design elements of the relation. The table cells indicate the presence
or number of relationships between the respective source and target
design element.

The dropdown list above the table shows the available relation matrices.
Select the relation matrix for display from this list.

Relation matrices can become quite large. Use the vertical and
horizontal scroll bars of the table to see more columns and rows, as
needed. The left hand column showing the source element names always
remains visible. To adjust its width, drag the separator bar between
the two table sides to a suitable position. The column header shows
the names of the target elements. To increase or decrease the height
of the column header, use the and buttons
above the table. You can adjust the width of
the table columns with the and
buttons.

The "Show full definition" button above the matrix opens the
measurement catalog with a detailed definition of the currently selected matrix
(see Section 4.13 "The View 'Catalog'").

Appendix D: "List of Matrices" describes the relation matrices that SDMetrics
calculates. Note that the relation matrices view will only show relation
matrices that are not empty. A matrix is empty if

- the model does not contain at least one source design element and one
target design element (zero rows or columns), or
- there are no relationships from source design elements to target design
elements (all table cells are empty).

You can define and display additional relation matrices of
your own, the procedure is described in Section 8.4 "Definition of Relation Matrices".
