Package com.sdmetrics.metrics

Provides the core functionality of SDMetrics: calculating metrics, checking design rules.

See:
          Description

Interface Summary
StronglyConnectedComponents.Graph<T> Provides the strongly connected components algorithm with the information it requires about the directed graph.


Class Summary
AbstractProcedure Base class for metric, set, and rule procedures as well as scalar, boolean, and set operations.
BooleanOperation Base class for Boolean operations in expressions.
ChangeDirectionsAdapter<T> Constructs a new graph from an existing one, reversing or removing the directions of the edges.
ElementGraph A graph consisting of model elements.
FilterAttributeProcessor Processes the standard filter attributes for individual model elements or entire sets.
Glossary Represents a glossary term entry in the metric definition file.
Matrix Represents the definition of a relation matrix in the metric definition file.
MatrixData Data structure to store the data for one matrix.
MatrixEngine Calculates relation matrices.
Metric Represents the definition of metric in the metric definition file.
MetricEntry Base class for entries in the metric definition file (metrics, sets, rules, or matrices).
MetricProcedure Base class for all metric procedures.
MetricProcedureAttributeValue Calculates an "attributevalue" metric procedure.
MetricProcedureCompare Calculates the deprecated "compare" metric procedure.
MetricProcedureCompound Calculates a "compound" metric procedure.
MetricProcedureConnectedComponents Calculates a "connectedcomponents" metric procedure.
MetricProcedureCount Calculates the deprecated "count" metric procedure.
MetricProcedureFilterValue Calculates a "filtervalue" metric procedure.
MetricProcedureNesting Calculates a "nesting" metric procedure.
MetricProcedureProjection Calculates a "projection" metric procedure.
MetricProcedureSetOperation Calculates the deprecated "setoperation" metric procedure.
MetricProcedureSignature Calculates a "signature" metric procedure.
MetricProcedureSubelements Calculates a "subelements" metric procedure.
MetricProcedureSubString Calculates the "substring" procedure to extract substrings from a string.
MetricProcedureValuesetOperation Calculates the deprecated "valueset" metric procedure.
MetricsEngine Calculates metrics and sets.
MetricStore Reads a metric definition file and provides access to metrics, sets, and rules defined therein.
MetricTools Collection of static helper methods that are useful for the implementation of calculation procedures.
ProcedureAttributes Stores the attributes of the calculation procedure definition of a metric, set, matrix, or rule in the metric definition file.
Reference Represents a literature reference in the metric definition file.
Rule Represents a design rule.
RuleEngine Checks the design rules for a model and reports violations.
RuleFilter Represents and evaluates a design rule filter expression.
RuleProcedure Base class for all rule procedures.
RuleProcedureCycle Checks a "cycle" rule.
RuleProcedureSet Checks rules based on set procedures.
RuleProcedureViolation Checks a "violation" rule with a simple rule condition.
RuleViolation Stores details about the violation of one specific rule by one specific model element.
ScalarOperation Base class for scalar operations in expressions.
Set Represents the definition of a set in the metric definition file.
SetOperation Base class for set operations in expressions.
SetProcedure Base class for all set procedures.
SetProcedureCompare Calculates the deprecated "compare" set procedure.
SetProcedureCompound Calculates the deprecated "compoundset" procedure for sets.
SetProcedureProjection Calculates the "projection" set procedure.
SetProcedureSubelements Calculates the "subelements" set procedure.
SetSummationHelper Helps set calculation procedures to build up their cumulative result sets.
StronglyConnectedComponents<T> Calculates the strongly connected components of a directed graph.
SummationHelper Processes the "sum" and "stat" attributes of metric calculation procedures.
Variables Contains the names and values of variables to use when evaluating metric, set, or condition expressions.


Enum Summary
DescriptionLocator Enumerates the locators for metrics, rules, and so forth in descriptions in the metric definition files.


Exception Summary
SDMetricsException Exception to deal with problems that can occur during metrics calculation.

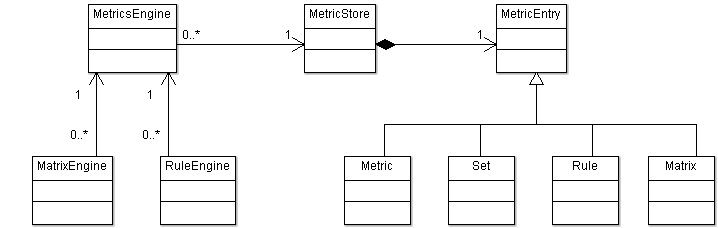

Package com.sdmetrics.metrics Description

Provides the core functionality of SDMetrics: calculating metrics, checking design rules.

Tutorial - how to calculate metrics and check design rules for a UML model.

The following code snippets take you through the steps to calculate the design metrics and check the design rules for a UML model, and write the results to the console. We assume we have already loaded the UML model, as described in the tutorial for package com.sdmetrics.model.

  1. Required imports:
    import java.util.Collection;

    import sdmetrics.metrics.Metric;
    import sdmetrics.metrics.MetricStore;
    import sdmetrics.metrics.MetricsEngine;
    import sdmetrics.metrics.Rule;
    import sdmetrics.metrics.RuleEngine;
    import sdmetrics.metrics.RuleFilter;
    import sdmetrics.metrics.RuleViolation;
    import sdmetrics.model.MetaModel;
    import sdmetrics.model.Model;
    import sdmetrics.model.ModelElement;
    import sdmetrics.util.XMLParser;

  2. Have your model and its metamodel ready (see com.sdmetrics.model), as well as the metric definition file with the metrics and rules you wish to calculate and check, respectively.
    MetaModel metaModel = ...;  // metamodel to use
    Model model = ...;          // model to uses
    String metricsURL = ...;    // metric definition file to use

  3. Read the metric definition file
    XMLParser parser = new XMLParser();
    MetricStore metricStore = new MetricStore(metaModel);
    parser.parse(metricsURL, metricStore.getSAXParserHandler());

    As is the case for parsing the metamodel and XMI files, you do not have to use the SAX parser provided by class XMLParser. Instances of org.xml.sax.XMLReader that you created yourself will also do.

  4. Initialize the metrics engine
    MetricsEngine metricsEngine = new MetricsEngine(metricStore, model);

    If you only want to check design rules, you can skip the next step and proceed directly with rule checking.

  5. Calculate all metrics for all model elements.

    In the following nested loop, we only calculate metrics that are not defined as "internal" helper metrics.

    for (ModelElement element : model) {
       System.out.println("Calculating metrics for element " + element.getFullName());
       // calculate and print all metric values for the element
       Collection<Metric> metrics = metricStore.getMetrics(element.getType());
       for (Metric metric : metrics) {
          if (!metric.isInternal()) {
             System.out.println("  Metric " + metric.getName() + ": "
                   + metricsEngine.getMetricValue(element, metric));
          }
       }
    }

  6. Check all rules for all model elements

    In this example we use a rule filter to only check design rules for the "analysis" phase. We also skip rules that have been disabled in the metric definition file, and we skip checking rules from which the model element has explicitly been exempted.

    RuleEngine ruleEngine = new RuleEngine(metricsEngine);
    RuleFilter ruleFilter = new RuleFilter("analysis");

    for (ModelElement element : model) {
       System.out.println("Checking rules for element " + element.getFullName());
       // get rules set of exempted rules for this element
       Collection<String> exemptRuleNames = ruleEngine.collectExemptedRules(element);
       Collection<Rule> rules = metricStore.getRules(element.getType());
       for (Rule rule : rules) {
          if (rule.isEnabled() && ruleFilter.match(rule)
                && !exemptRuleNames.contains(rule.getName())) {
             List<RuleViolation> issues = ruleEngine.checkRule(element,rule);
             for (RuleViolation issue : issues) {
                System.out.println("  Violates rule "
                   + issue.getRule().getName() + ": "
                   + issue.getValue());
             }
          }
       }
    }

Instead of manually looping through all model elements, metrics, and rules, you can also use the classes in package com.sdmetrics.app to calculate all data and organize it in a tabular layout.
