4.2.1.2 The Project File Settings Dialog

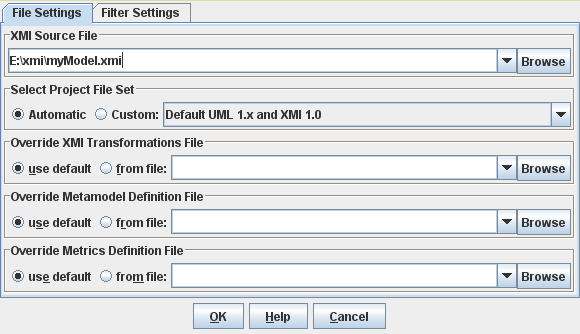

Figure 6: Project File Settings Dialog

On the file settings dialog, you specify the project files to use. From top to bottom:

XMI Source File
To specify the XMI source file,

• enter the name of the XMI file with your UML design in the text field,
• or click the arrow down button next to the text field to pick a file from a list of recently used XMI source files,
• or click the "Browse..." button next to the text field; this opens a standard file chooser dialog where you can navigate the file system to select the file,
• or if your system supports file drag and drop, you can drop the XMI file anywhere into the main window or the project file settings dialog.

Name	Description
Default UML 1.x and XMI 1.0	XMI 1.0 import and metrics for UML 1.x models
Default UML 1.x and XMI 1.1-1.3	XMI 1.1/1.2/1.3 import and metrics for UML 1.x models
Default UML 2.x and XMI 2.x	XMI 2.x import and metrics for UML 2.x models

Table 1: Default project file sets

When you select the radio button "Automatic", SDMetrics will automatically determine the most suitable project file set based on the XMI version and exporter of the XMI source file at hand. When you select the radio button "Custom", SDMetrics will always use the project file set selected from the dropdown list. This feature is useful when you have created your own project file sets (see Section 4.16.1 "Project File Sets"), or if SDMetrics has problems determining the XMI version of your XMI source file, or if SDMetrics cannot match the XMI version to one of the available project file sets.

Most of the time, you will want to use a project file set "as is". You can, however, replace any or all files of the project file set with modified or custom project files of your own, e.g., to calculate a different set of design metrics.

Override XMI Transformations File
If you do not wish to use the XMI transformation file of the applicable project file set, you can specify an alternative XMI transformation file to use here. Select the "from file" radio button, and specify your transformation file in the text field next to it (using the browse button, the list of previously used XMI transformations, or drag and drop the file into the dialog).
See Section 7.2 "XMI Transformation Files" for more information on how to create your own XMI transformation files.

Override Metamodel Definition File
To use a modified or custom metamodel of your own, select the "from file" radio button, and specify your metamodel definition file in the text field next to it (using any of the means described above).
See Section 7.1 "SDMetrics Metamodel" for more information on how to create your own metamodel definitions.

Metrics Definition File
To use a metrics definition file of your own, select the "from file" radio button, and specify your metrics definition file in the text field next to it (using any of the means described above).
See Section 8 "Defining Custom Design Metrics and Rules" for more information on how to create your own metrics definition files.
