4.16.1.1 Adding New Project File Sets

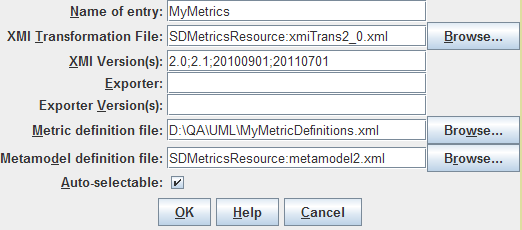

Figure 26: Project File Set Editor

The parameters of a project file set are as follows:

• Name of entry: The name of the project file set.
• XMI Transformation File: The location of the XMI transformation file of this project file set. Enter the file name in the text field, or use the "Browse..." button to locate the file via a file chooser dialog.
• XMI version number(s): The XMI version numbers or version-namepaces that the XMI transformation file handles. For XMI versions 1.0 to 2.1, indicate the version number as shown in the "version" attribute in the XMI file. For XMI version 2.4 and later, indicate the version-namespace, that is, the last part of the XMI namespace. For example, the XMI 2.4.1 namespace is "http://www.omg.org/spec/XMI/20110701", so the version-namespace is 20110701.
  List all supported XMI version numbers and/or version namespaces, separated by semicolons, e.g. 2.0;2.1;20110701.
• Exporter: If you created the XMI transformation file for a specific XMI exporter, enter the name of the exporter here. Use the exact name of the exporter as indicated in the XMI.exporter element in the documentation section of the XMI files produced by the exporter.
  Leave this field empty if the XMI transformation file is not written for a specific exporter.
• Exporter Version(s): If you created the XMI transformation file for a specific version of an exporter, specify the version number here. Use the exact version number as indicated in the XMI.exporterVersion element in the XMI files produced by the exporter. If the XMI transformation file is suitable for several exporter versions, list all supporter exporter version numbers, separated by semicolons.
  Leave this field empty if the XMI transformation file is not written for a specific version of the exporter.
• Metric definition file: The location of the metric definition file of this project file set. Enter the file name in the text field, or use the "Browse..." button to locate the file via a file chooser dialog.
• Metamodel definition file: The location of the metamodel definition file of this project file set. Enter the file name in the text field, or use the "Browse..." button to locate the file via a file chooser dialog.
• Auto-selectable: Controls if the project file set is available for selection if you let SDMetrics automatically select the project file set to use for a given XMI input file. When disabled, the project file set can only be selected manually.
